You want shade fast. At the same time, you want less effort on deck. This guide shows price, parts, and install steps using linear actuator. So, you can set up a reliable system.
Overview and Key Aspects
First, understand the setup.

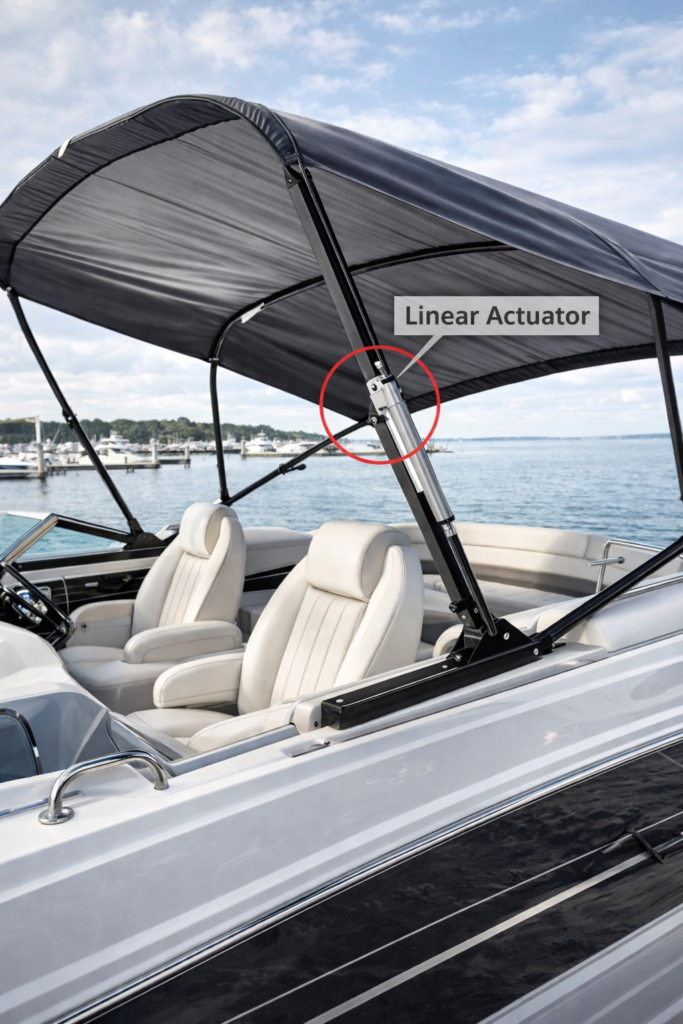

- Two 12V linear actuators lift and fold the frame
- Next, a DPDT switch or remote controls motion
- Finally, the top moves into a storage boot
Then, note the value.
- Quick deployment in seconds
- Consistent positioning every time
- Cleaner cockpit with fewer locks
How It Is Used and Works
When you press the switch, the system reacts at once.
- First, press forward. The actuators extend
- Then, the frame lifts and opens
- Next, press reverse. The actuators retract
- Meanwhile, limit switches stop motion at ends
- If needed, two units move in sync
As a result, motion stays smooth and balanced.
Key Application Areas and Reasons
You can use this system across boat types.
- For pontoons, you adjust shade often
- For yachts, you want comfort and low noise
- For fishing boats, you need quick fold space
- For rentals, you reduce user damage
Therefore, automation improves safety and speed.
Required Components
Before you start, gather all parts.
- 2 × 12V linear actuators
- Then, mounting brackets and pins
- Also, a DPDT switch or remote
- Next, a wiring kit with fuse
- Finally, a 12V battery connection
Key Features and Technology
Choose parts with these features.
- First, IP65–IP67 sealing
- Next, stainless hardware
- Also, correct load rating
- Then, proper stroke length
- Finally, limit switches
In addition, use sync control for dual units.
Key Benefits and Specifications
Typical specs are simple.
- Voltage: 12V 0r 24V DC
- Force: 1500–6000 N
- Speed: 4–160 mm/s
- Stroke: 30–1200 mm
Because of this, you get:
- One-touch control
- Less manual effort
- Longer hardware life
Linear Actuator Price Range
Prices depend on sealing, force, and speed.
| Component Type | Key Features |
|---|---|
| Budget actuators | Basic 12V, may need extra sealing |
| Marine-grade actuators | IP65/IP66, higher load |
| High-performance models | Heavy duty, faster, dual sync |
| Complete kits | Include frame, canvas, hardware |
So, pick based on load and use.
Comparison Table
| Feature | Budget | Marine Grade | High Performance |
|---|---|---|---|
| IP rating | Low | IP65–IP66 | IP66–IP67 |
| Load | Low | Medium | High |
| Speed | Moderate | Moderate | Higher |
| Lifespan | Shorter | Longer | Longest |
| Use | Small boats | Standard | Large yachts |
Steps to Follow
Follow these steps in order.
1. Plan stroke and force
- First, measure travel distance
- Then, choose force at 1.5–2× load
2. Mount brackets
- Next, fix rear bracket to a solid point
- Then, attach front bracket to the moving arm
3. Align the actuator
- After that, keep it straight
- Otherwise, binding may occur
4. Wiring
- Next, connect to DPDT switch
- Also, add a fuse
5. Sync and test
- Finally, run multiple cycles
- Then, check smooth motion on both sides
Checklist for You
Before final use, verify each item.
- First, correct stroke length
- Next, adequate force rating
- Also, IP65+ sealing
- Then, proper alignment
- Finally, clean wiring with fuse
Operations and Functions
During use, control is simple.
- First, extend for shade
- Next, retract for storage
- Then, set partial angles
- Finally, system auto-stops
Advantages and Disadvantages
Advantages
- Faster operation
- Less effort
- Better safety
- Cleaner setup
Disadvantages
- Higher initial cost
- Needs wiring
- Needs maintenance
Examples
Here are common setups.
- First, small pontoon
- Next, mid-size boat
- Finally, yacht
Pro Tip
Always choose IP65 or higher. Also, pick actuators with limit switches. This prevents motor damage and extends life.
Internal Links
- https://electricactuator.in/order-furniture-column-actuator-manufacturers/
- https://electricactuator.in/product/linear-actuator-ks-fy022-100mm-12vdc-7mm-s-2500n/
- https://electricactuator.in/best-linear-actuator-for-event-container-door/
- https://electricactuator.in/boat-hatch-up-down-using-linear-actuator/
- https://electricactuator.in/product/linear-actuator-ks-fy022-100mm-24vdc-7mm-sec-2500n-ip65/
People Also Ask
1. Which is the best marine bimini top automation system in India?
In most cases, marine-grade dual actuator systems with IP65+ rating perform best.
2. What are the benefits of automating a boat bimini top?
You get faster setup. Also, you reduce effort. As a result, safety improves.
3. Who offers affordable linear actuator for marine bimini tops in India?
Many actuator suppliers and automation retailers provide budget to premium options.
4. How does a marine bimini automation system work?
Actuators extend or retract the frame. Meanwhile, switches control direction.
5. How to install a linear actuator for a marine bimini top?
First, mount brackets. Then, align the unit. Next, wire and test.
6. Recommended linear actuator for boat bimini automation in India?
Choose 12V, IP65+, correct stroke, and enough force.
7. Which companies offer marine bimini automation services in India?
Marine fabricators and actuator suppliers offer supply and installation.
8. Can I get a cost estimate for an electric bimini system installation?
Yes. First, share boat size. Then, get a detailed quote.
9. Guide for installing a motorized bimini on a yacht?
First, select heavy-duty actuators. Then, align well. Finally, test for smooth sync.
